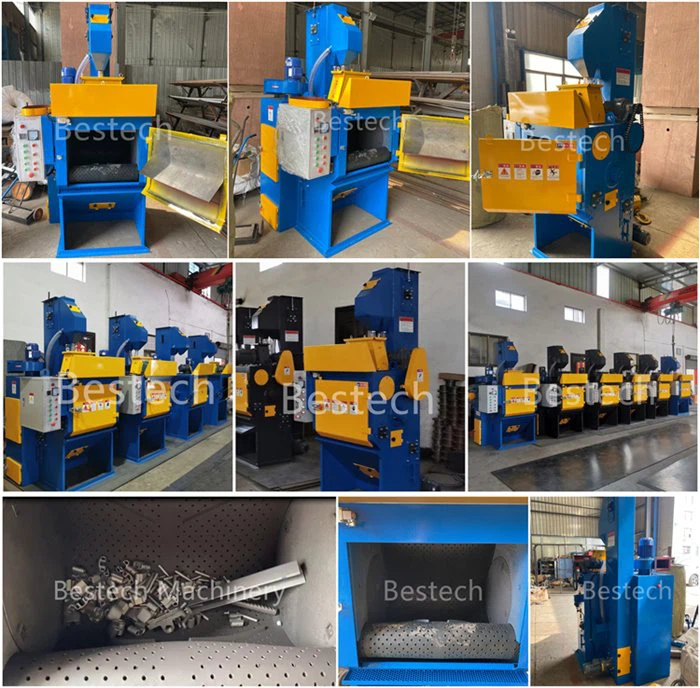

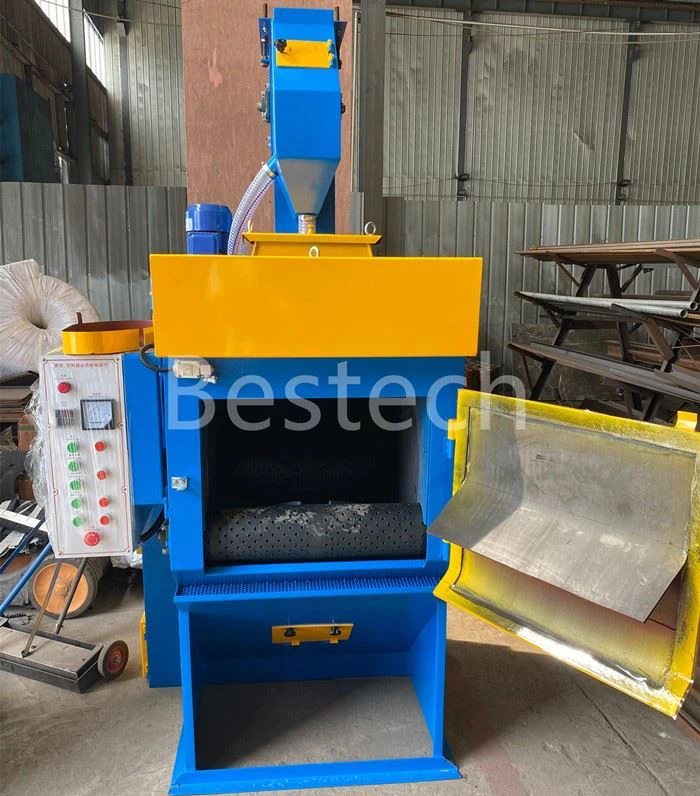

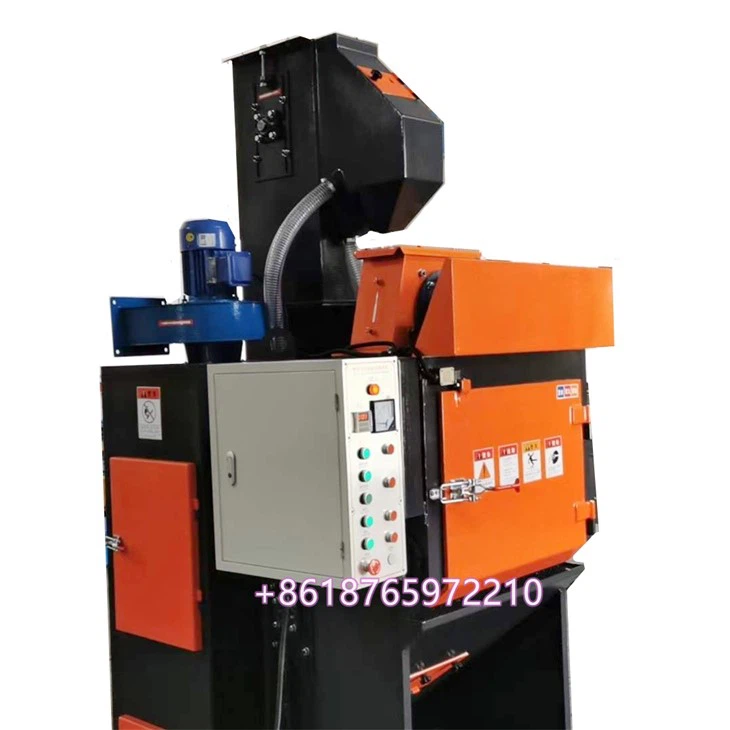

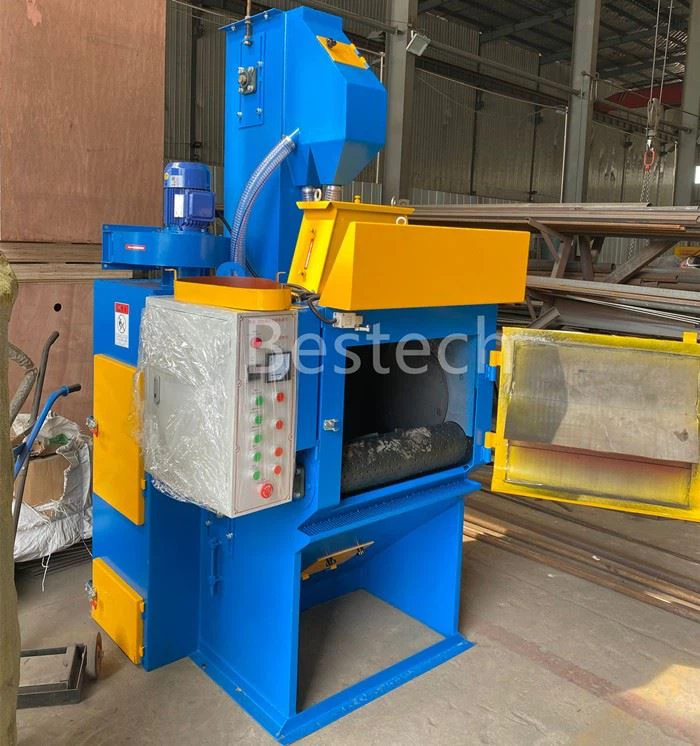

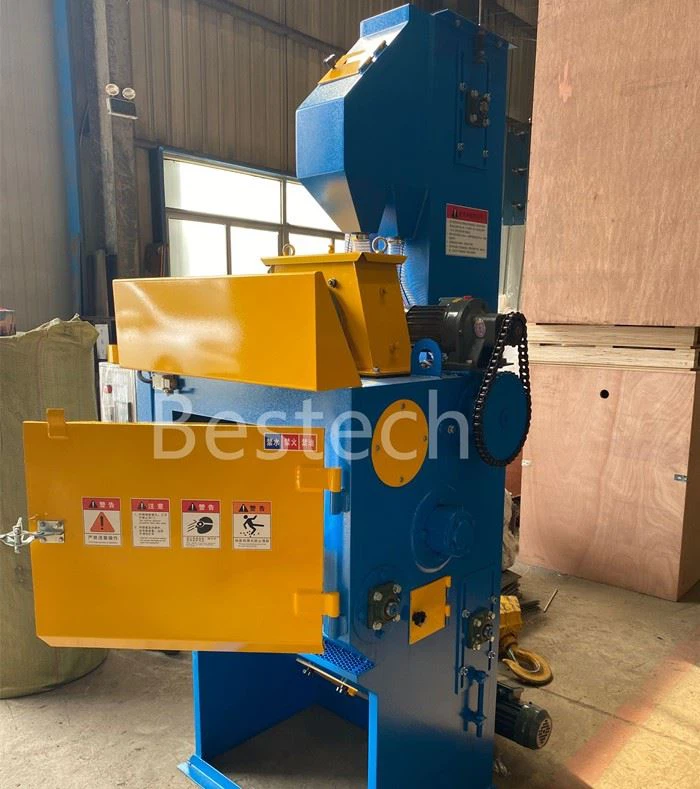

Q324 tumbler belt shot blasting machine main technical specifications:
1, track end disc diameter ----------------φ400mm
2. Track end disk speed ----------------3.6r/min
3. The maximum single weight of the cleaned workpiece -------5kg
4, the maximum load of the machine (easy rolling parts) -80-100kg
5. Productivity ----------------------40kg/min(grey casting)
6. Shot blasting machine:
Model number ---------------------------Q032
Impeller diameter -----------------------φ250mm
Shot blasting power ---------------------7kw
7, dust collector air volume ------------------2000m3/h
8, machine size (L×W×H) ------1300×1300×2450mm
tumbler belt shot blasting machine is a kind of medium-sized shot blasting equipment, which is suitable for sand cleaning, rust removal, oxidation skin removal and surface strengthening of small castings, forgings, stamping parts, gears and springs in machine tools, automobiles, textile machinery, metallurgy, aerospace and other industries, especially for the cleaning and strengthening of parts that are afraid of bump.
This machine is an innovative product designed and developed with advanced technology at home and abroad. It has the advantages of good cleaning effect, compact structure, low noise and good complete set.
The main structure of the tumbler belt shot blasting machine:

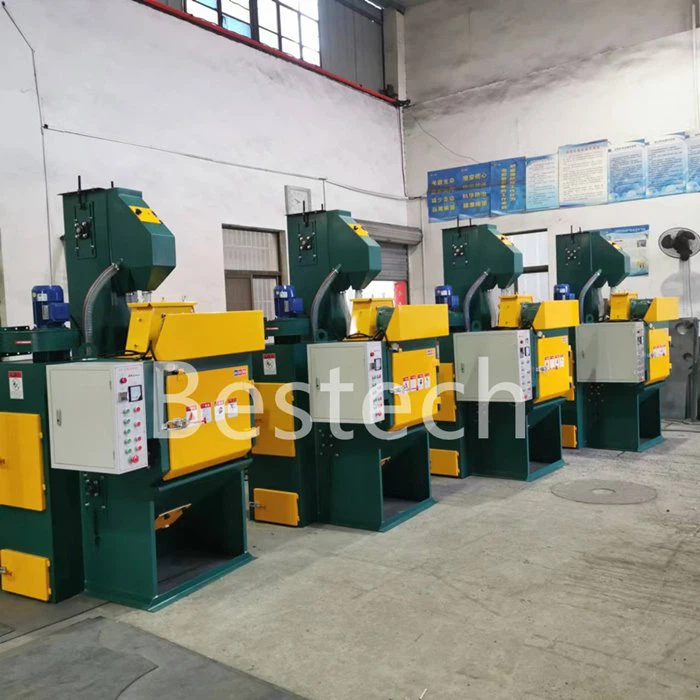

Crawler type shot blasting machine is mainly composed of shot blasting device, shot blasting room, shot sand lifting separation mechanism, dust removal mechanism, electrical control system and so on. The inner cavity, the blade and the interior wall of the shot blasting machine are all lined with high chromium wear-resistant cast iron to improve the service life.
The working principle of tumbler belt shot blasting machine:
The projectile sand lifting separation mechanism will separate the projectile, the broken projectile and the dust to get the qualified projectile, the projectile by the self-weight of the shot blasting chute into the high-speed rotation of the projectile wheel and rotation together with it, under the action of centrifugal force into the directional sleeve and in the rectangular window of the directional sleeve, to the high-speed rotation of the blade, the projectile on the blade surface from inside to outside for accelerating motion, Finally, it is fan-shaped to the workpiece at a certain linear speed so that the workpiece surface can be cleaned by shot blasting. When the track in the shot blasting room rotates forward, it drives the workpiece to roll, so that all the work pieces and all the surfaces of the work pieces in the shot blasting room can be cleaned. At the same time, the pellet sand returns to the lifting separation mechanism, which is recycled after separation. When the track rotates in reverse, the workpiece is poured out.
Scope of Application tumbler belt shot blasting machine:
Tumbler belt shot blasting machine, suitable for all kinds of parts surface cleaning. All kinds of metal castings surface sand cleaning, surface rust removal of black metal parts, stamping parts surface blunt edge, forgings and heat treatment and spring surface oxide skin removal and surface grain refining can be achieved by the series of equipment shot blasting process, its application range is very wide, mainly foundry, thermal treatment plant, electrical factory, machine tool parts factory, bicycle parts factory, moving Machine factory, automobile parts factory, motorcycle parts factory, non-ferrous metal die casting factory, etc., after shot blasting the workpiece can obtain good material color, but also can become the metal parts surface black, blue, passivation and other processes before the process, but also can provide a good base surface for electroplating, painting, finishing, through the machine after shot blasting can reduce tensile stress, At the same time, the surface grain refinement, so as to strengthen the performance of the workpiece, increase its service life.
Q324 tumbler belt shot blasting machine Operation:
1. All the operators of the machine must have a comprehensive understanding of this manual and the working principle, performance, operation method, lubrication and other aspects of the machine before they can operate.
2. Add the projectile into the drum one after another, then put it into the workpiece, close the door, and prepare to drive.
3. Start the dust collector. The fan starts to work.
4, button in turn to start: elevator, drum positive rotation, shot blasting device, shot supply gate start cleaning work, after cleaning, button in turn to close: shot supply gate, shot blasting device, hoist, drum positive rotation, dust removal fan.
5. After the shot blasting machine is completely stopped, open the feeding door and press the drum reverse button, the material can be automatically discharged.
6, in case of emergency, you can press the emergency stop button, the machine will stop working immediately.
7. After all the work is finished, the dust collector should be closed in time.
Q:How many days will be used to produce this tumbler belt shot blasting machine?
A:Normally within 10 workdays or according to customer's requirement
Q:Can you provide installation and commissioning overseas?
A:This equipment is easy to instaled by customer according to our drawing
Q:Are you manufacture or trading company?
A:We are manufacture,welcome to visit our factory
